Basic
properties
|
| Category: |
F3B,
F3F |
| Wing
span: |
3200 mm |
| Weight: |
from
2350 g |
| Wing
area: |
63,88 dm2 |
| Tailplane
area: |
5,42
dm2 |
|
|
Detailed
Parameters...
|
|
Drawing...
|
|
Basic
setting model...
|
|
Pictures
model...
|
|
As
electric version...
|
|
|
Detailed Parameters:
|
| Category: |
F3B,
F3F |
| Conception: |
Two
part wing, X-tail |
|
Wing
span: |
3200
mm |
|
Length: |
1540
mm |
|
Wing
area: |
63,88
dm2 |
|
Elevator
area: |
5,42
dm2 |
|
Wing
airfoil: |
HQ
1,6/7,5 mod |
|
Elevator
airfoil: |
SD
8025 |
|
Weight: |
from
2350g |
|
Ballast: |
800g |
|
Maximum
servo width: |
Wing
center: 13
mm, wing tip: 10
mm , fuselage: 15 mm |
| Construction: |
|
|
Wing |
carbon-herex-glass, carbon-herex-carbon |
|
Spar |
UMS carbon |
|
Elevator |
glass-balsa-glass |
|
Fuselage |
carbon-glass |
|
|
back
up
|
|
|

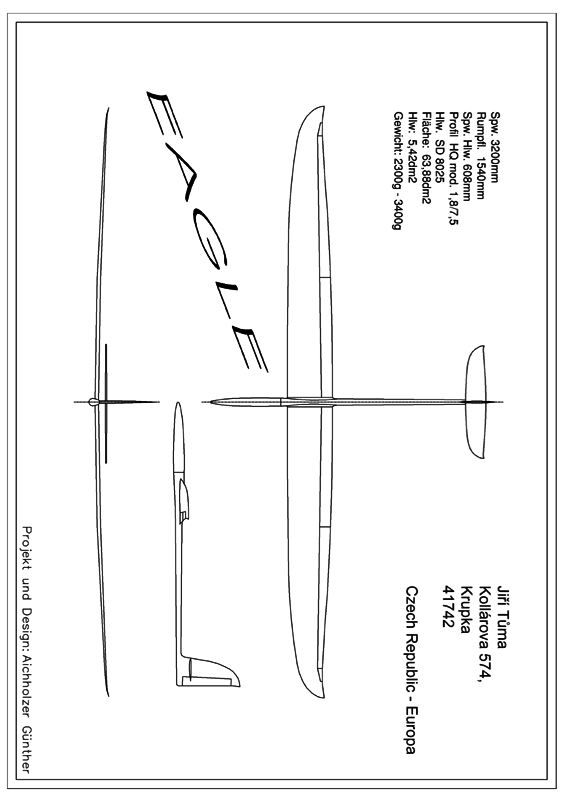

Drawing:
|
|
|
|
back
up
|
|
|
Basic setting model:
|
|
This is only the recommended setup, the pilot has to
fine-fune it depending on his own style. The deviations of the
control surfaces are shown on the pictures
|
Flight task - parameter
|
Value - neutral
settings |
|
Center of
gravity
|
From
the leading edge 95 mm
|
|
Towhook
|
from
end of cabin 128 mm
|
|
Start
|
Flaps:
|
+12
mm
|
|
Ailreon:
|
in
the same line as flaps
|
|
Elevator:
|
+
1 mm
|
|
Task A
|
Flaps:
|
+
4 mm
|
|
Ailreon:
|
in
the same line as flaps
|
|
Elevator:
|
0
mm
|
|
Task B
|
All
surfaces:
|
0 mm
|
|
Task C
|
Flaps:
|
-1,5
mm
|
|
Ailreon:
|
in
the same line as flaps
|
|
Elevator:
|
+ 1
mm
|
|
Butterfly:
|
Flaps:
|
Maximum
(45 mm)
|
|
Ailreon:
|
-
5
mm
|
|
Elevator:
|
cca
-5 mm
|
Setting of deviations in
different flight phases. You can download the setting in full
size here
|
|
back
up
|
|
|
Pictures model:
|
|
|
|
|
