Basic
properties
|
| Category: |
F3J |
| Wing
span: |
3440 mm |
| Weight: |
from
2200 g |
| Wing
area: |
68
dm2 |
| Tailplane
area: |
7
dm2 |
|
|
Detailed
Parameters...
|
|
Drawing...
|
|
Basic
setting model...
|
|
Pictures
model...
|
|
|
Detailed Parameters:
|
| Category: |
F3J |
| Conception: |
Tree-part
wing, V-tail |
|
Wing
span |
3440
mm |
|
Length: |
1520
mm |
|
Wing
area: |
68
dm2 |
|
Elevator
area: |
7
dm2 |
|
Wing
airfoil: |
MH
32 mod |
|
Elevator
airfoil: |
SD
8025 |
|
Weight: |
from
2200g |
|
Ballast: |
Not availible |
|
Maximum
servo width: |
wing
center: 15
mm, wing tip: 13
mm , fuselage: 15 mm |
| Construction: |
|
|
Wing |
glas-balsa-glas,
D-box, carbon-balsa-glas |
|
Nosník |
UMS
carbon |
|
Výškovka |
glass-balsa-glass |
|
Trup |
carbon-glass |
|
|
back
up
|
|
|

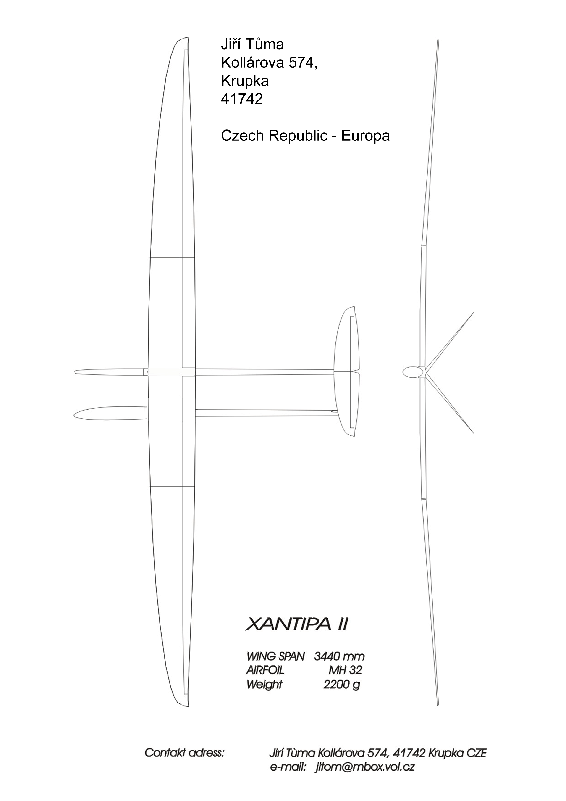

Drawing:
|
|
|
|
back
up
|
|
|
Basic setting model:
|
|
This is only the recommended
setup, the pilot has to fine-fune it depending on his own
style. The deviations of the control surfaces are shown on the
pictures
|
Flight task - parameter
|
Value - neutral
settings |
|
Center of
gravity
|
From
the leading edge 96 mm
|
|
Towhook
|
|
|
Start
|
Flap:
|
+9
mm
|
|
Ailreon:
|
+4
mm
|
|
Elevator:
|
-
1 mm
|
|
Thermic
|
Flap:
|
+
2 mm
|
|
Ailreon:
|
in
the same line as flaps
|
|
Elevator:
|
0
mm
|
|
Speed-flyover
|
Flap:
|
-2
mm
|
|
Ailreon:
|
in
the same line as flaps
|
|
Elevator:
|
-1
mm
|
|
Butterfly:
|
Flap:
|
Maximum
down
|
|
Ailreon:
|
-5
mm
|
|
Elevator:
|
cca
-3 mm
|
Setting of deviations in different flight
phases. You can download the setting in full size here
|
|
back
up
|
|
|

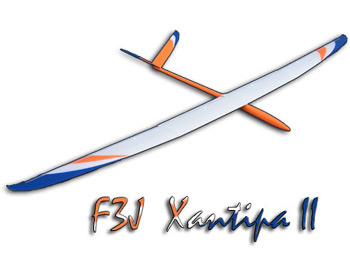

Pictures model:
|
|
|
|
|
